Easy Ethernet Distance Extension
|
|
|
|
High Performance Ethernet over VDSL Solution
The PLANET VC-201A is an Ethernet-over-VDSL2 media converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the absolutely fastest data transmission speeds over existing copper telephone lines without the need of rewiring. The VC-201A supports ultra-high performance to the pervasive telephone line network with up to 100/55Mbps asymmetric data rate within 200m and 25/4Mbps for 1.6km long range connections.
Provides Superior Upstream and Downstream Transmission
The VC-201A also defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the transmission of upstream and downstream signals. The featured band plan 997 provides the symmetric transmission on both downstream and upstream. On the other hand, the band plan 998 performs higher transmission quality in short range for central side (CO) in asymmetric mode. In all, when the VC-201A is in symmetric mode, it provides better upstream performance, and when the VC-201A is in asymmetric mode, it gives better downstream performance.
|
|
|
|
|
|
|
|
|
|
|
Cost-effective VDSL2 Profile 17a CO / CPE bridge solution
|
|
|
One box design, CO / CPE selectable via DIP Switch
|
|
|
Defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the transmission of upstream and downstream signals
|
|
|
Built-in POTS splitter to share voice and data
|
|
|
Two RJ-11 connectors for each VDSL port, one for VDSL connection and one for POTS connection
|
|
|
Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
|
|
|
Selectable target band plan and target SNR margin
|
|
|
|
|
|
|

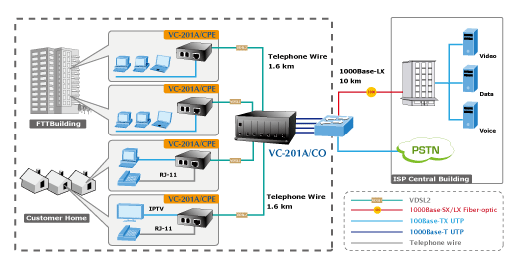

Last Mile of FTTx deployment
|
|
The VC-201A is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the last mile from the ISP / Telecom / Service providers fiber node to the buildings and customers home. The 10/100Mbps port of VC-201A can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built by Internet because every room or house could use the existing phone line to transmit data through the Internet and the whole building could share the Internet to the wider area network with minimum cost.
|
|
|
|
|
|
|
|
For your inquiries or comments,please contact your regional sales representative, or email us at sales@microdata.fi.Thank you.
|
|
|
|
|
|
|
